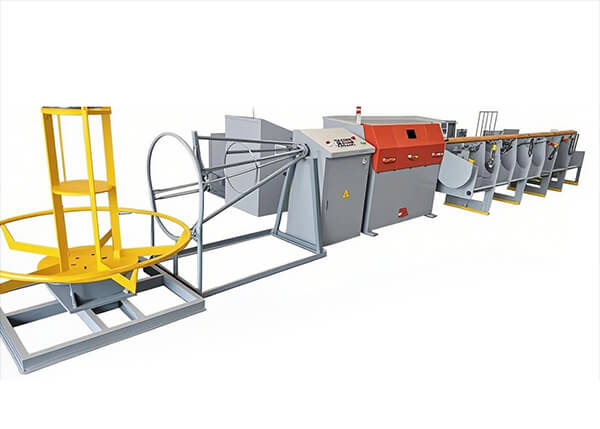

High speed straightening and cutting machine
FOB Price:US $3,000-11,500/Set
Min.Order Quantity:1 Set/Sets
Supply Ability:25/Sets per Month
Port:Tianjin
Payment Terms:T/T, L/C, Western Union
Details
Adopt frequency motor to feed wire, the wire feeding speed can be adjusted on the touch screen, and the wire feeding gearbox feeds wire more stably. PLC control, variable frequency motor straightening, adjustable speed. Servo cutting, more precise and stable.2-4mm &3-6mm &4-8mm &6-12mm, wire diameter and length can customized.
Wire Diameter | 3-6mm | Length | 0.5-3/6/9/12m |
Speed | 90-120m/min | Cutter Type | Servo Cut (3.8KW) |
Motor power | 11KW (Straightening motor 5.5KW,wire feeding motor 2.2kw,cut servo motor 3.8kw) | Voltage | 220V 380V 415V 440V 50HZ 3Phase(can customized) |
Material | Black wire,galvanized iron wire | Feeding type | From coil |
Wire pressing method | Pneumatic | PLC | Delta Brand |
