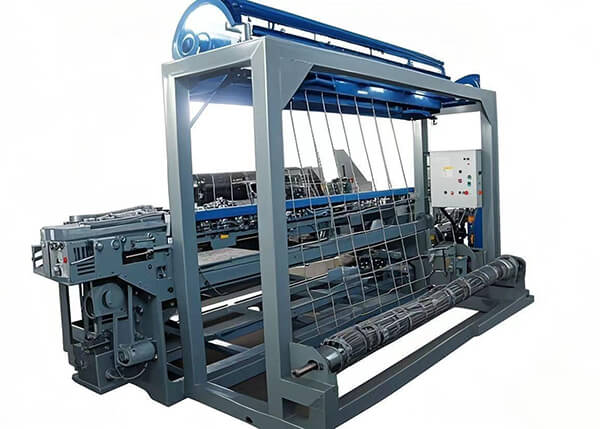

Grassland Fence Machine
FOB Price:US $6,200-10,000/Set
Min.Order Quantity:1 Set/Sets
Supply Ability:25/Sets per Month
Port:Tianjin
Payment Terms:T/T, L/C, Western Union
Details
The grassland fence machine is also called field fence machine, cattle fence machine or farm fence machine.This machine can produce a grassland fence that is widely used in zoo fences, cattle, sheep, horses, rabbits, construction site fences, poultry enclosures.
It has the characteristics of high production, easy operate, low failure rate.Line wire and cross wire both are feeding automatically from coil. It is not easy to pull apart .
Our machine adpots sophisticated computer control, advanced manufacturing techniques. It has the features of novelty,the high degree of automation, reliablity and operation safety,long life and easy operation.
Type | 1490mm | 1880mm | 2000mm | 2400mm |
motor | 5.5kw | 5.5kw | 5.5kw | 5.5kw |
Dimension | 2.8*3.2*2.4(m) | 3.3*3.2*2.4(m) | 3.4*3.2*2.4(m) | 3.9*3.4*2.4(m) |
Efficiency | ≤45row/min | ≤45row/min | ≤45row/min | ≤45row/min |
Twine diameter | 1.8-2.5(mm) | 1.8-2.5(mm) | 1.8-2.5(mm) | 1.8-2.5(mm) |
Side wire diameter | 2.0-3.5(mm) | 2.0-3.5(mm) | 2.0-3.5(mm) | 2.0-3.5(mm) |
Voltage | 380v-440v | 380v-440v | 380v-440v | 380v-440v |
Weight | 3.0T | 3.8T | 4.0T | 4.8T |
Wrap number | 11 | 13 | 18 | 23 |
Line wire space | minimum 89mm | 89mm | 89mm | 89mm |
Weft numbe | 10 | 12 | 17 | 22 |
