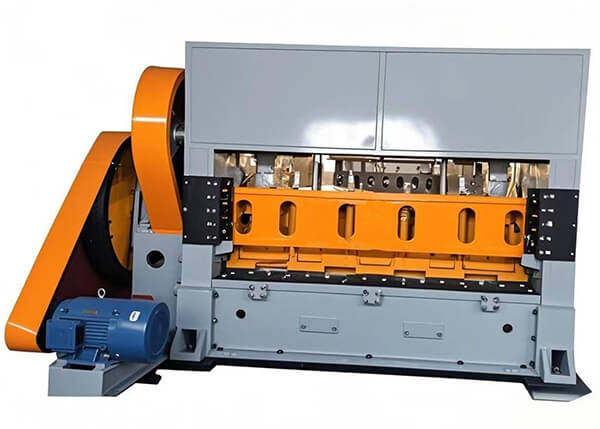

Expanded metal machine
FOB Price:US $6,000-23,000/Set
Min.Order Quantity:1 Set/Sets
Supply Ability:25/Sets per Month
Port:Tianjin
Payment Terms:T/T, L/C, Western Union
Details
Our factory produces various types of expanded metal mesh machines. The machine adopts new technologies such as CNC stepper motor feeding, automatic cutting, high production efficiency, good safety and stability. Reasonable structure, beautiful appearance, environmental protection and energy saving.
Model | Thickness | Max Width | Speed | Motor | Size | Weight |
JQ25-6.3 | 0.1-1mm | 600mm | 280 Times/Min | 2.2kw | 1100*750*1500mm | 1100kgs |
JQ25-16 | 0.1-1mm | 1000mm | 220 Times/Min | 3.0kw | 1500*900*1650mm | 2200kgs |
JQ25-25 | 0.1-1.5mm | 1250mm | 190 Times/Min | 5.5kw | 2050*1500*2000mm | 3000kg |
JQ25-40 | 0.1-2.5mm | 1500mm | 110 Times/Min | 11kw | 2900*1500*1900mm | 7000kg |
JQ25-63 | 0.5-3mm | 2000mm | 75 Times/Min | 11kw | 3400*3400*2350mm | 11000kg |
JQ25-100 | 0.5-5mm | 2000mm | 60 Times/Min | 18.5 KW | 3400*3600*2650mm | 13000kg |
