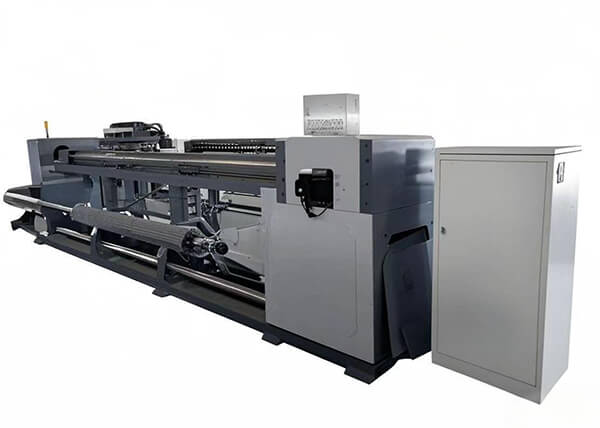

Hexagonal wire mesh machine
FOB Price:US $7,000-15,000/Set
Min.Order Quantity:1 Set/Sets
Supply Ability:25/Sets per Month
Port:Tianjin
Payment Terms:T/T, L/C, Western Union
Details
This hexagonal mesh machine is equipped with advanced automation technology to efficiently produce various specifications of hexagonal mesh. It is widely used in industries such as construction, agriculture, mining, and transportation.
Products Advantages :
High production efficiency, saving labor costs
Fully automated control, easy to operate
Suitable for producing different materials and specifications of hexagonal mesh
Low maintenance cost, long-lasting performance
| Model | YP-2500 |
| Mesh opening size | 1/2",3/4",1",2",3"(can be customized as you want) Note: one set machine can only make one mesh opening size |
| Mesh width | 2.5m,3m,3.3m,4m,4.3m,(can be designed as you want) Note: can weave 2-4 rolls mesh at the same time |
| Weaving speed | 1/2" opening,60-65m/hour*Roll number 3/4" opening,75-80m/hour*Roll number 1" opening,90-100m/hour*Roll number 2" opening,150-160m/hour*Roll number 3" opening,180m/hour*Roll number |
| Servo motor capacity | 22kw |
| Raw material | Galvanized wire or pvc coated wire |
| Wire diameter | 0.4-2.2mm |
| Voltage | 380V 415V 440V (can customized) |
| Overall Dimensions | 4800x1300x1600mm |
| Weight | 4600kgs |
